Non Woven Bag Manufacturing Machine
In 2012, the company launched the world's first non-woven box bag making machine; In 2016, the project pp 3D bag making machine research and development was successful in 2022, and successfully developed plastic 3D bag making machine in 2017; In 2023, a new structured paper square bottom bag making machine was launched, After completing the independent research and development of the four major 3D bag production equipment, we have become a professional manufacturer of packaging 3D bag mechanical equipment. The product is widely used in four major shopping bags and various product packaging bags.
Why Choose Us
Our Factory
Zhejiang Zhengwei Machinery Co., Ltd. was established in 2007 and located in the south Zhejiang coast, the East China Sealt. It is a famous Chinese machinery manufacturing city - Ruian City, Zhejiang Province.
R&D
The company adheres to the design concept of high efficiency and environmental protection, with the mission of reducing white pollution, and is committed to the research and development, production, manufacturing, sales, and service of equipment such as non-woven box bags, plastic 3D bags, new structure paper square bottom bags, and pp 3D bags. In long-term practice, the company has gradually formed a business philosophy with independent research and development, design and manufacturing capabilities as its positioning. So far, the company has more than 100 invention patents and new utility and appearance patents.
Rich Experience
In 2012, the company launched the world's first non-woven box bag making machine; In 2016, the project pp 3D bag making machine research and development was successful in 2022, and successfully developed plastic 3D bag making machine in 2017; In 2023, a new structured paper square bottom bag making machine was launched, After completing the independent research and development of the four major 3D bag production equipment, we have become a professional manufacturer of packaging 3D bag mechanical equipment.
Our Service
The company adheres to the service tenet of "ZWE offer the best service to win the trust of customers", and strives to create a new era in the 3D bag industry. Focusing on the future, consistently, based on innovation, and strives to create a new era in the three-dimensional bag industry.
Non Woven Bag Handle Sealing Machine
Model:ZW-FM600
Material: Non-woven/PP
Material Thickness:30-100g
Production Speed:30-100pcs/min
Max. Bag Length:850mm
Max. Bag Height:580mm
Model:ZW-FM600
Material:Non-woven/PP
Material Thickness:30-100g
Production Speed:30-100pcs/min
Max. Bag Length:850mm
Max. Bag Height:580mm
Cloth Carry Bag Making Machine
Model:ZW-FM600
Material:nonwovensNon-woven/PP
Material Thickness:30-100g
Production Speed:30-100pcs/min
Max. Bag Length:850mm
Max. Bag Height:580mm
W Cut Non Woven Bag Making Machine
Model:ZW-FMF600
Material:Non-woven/PP
Material Thickness:35-120g
Production Speed:30-120pcs/min
Max. Bag Length:1000mm
Max. Bag Height:580mm
Non Woven Bag Handle Punching Machine
Model:ZW-FMF600
Material:Non-woven/PP
Material Thickness:35-120g
Production Speed:30-120pcs/min
Max. Bag Length:1000mm
Max. Bag Height:580mm
Model:ZW-FMF600
Material:Non-woven/PP
Material Thickness:35-120g
Production Speed:30-120pcs/min
Max. Bag Length:1000mm
Max. Bag Height:580mm
Automatic Carry Bag Making Machine
Model:ZW-FMF600
Material:Non-woven/PP
Material Thickness:35-120g
Production Speed:30-120pcs/min
Gas Source:0.8㎡/min 1.0mpa
Total Power:15kW
Non Woven Bag Manufacturing Unit
Model:ZW-A9
Material:Non-woven(laminating)
Material Thickness;80-140g
Production Speed:40-60pcs/min
Bag Width:200-460mm
Bag Gusset:70-200mm
Non Woven Bag Making And Printing Machine
Model:ZW-A9
Material:Non-woven(laminating)
Material Thickness:80-140g
Production Speed:40-60pcs/min
Bag Width:200-460mm
Bag Gusset:70-200mm
The non-woven fabric bag making machine is applicable to non-woven fabric, which can process non-woven fabric bags of different specifications and shapes, advertising bags, gift bags, purse bags, handbags, leather bags, etc. The non-woven fabric bag making machine integrates machine and electricity, and uses touch screen for operation. Step by step fixed length, photoelectric tracking, accurate and stable. The automatic counting can set the counting alarm, automatic punching and other industrial control devices, so that the finished products can be sealed firmly and cut beautifully. High speed and efficiency, it is the highest quality environment-friendly bag making equipment that we can use with confidence.
Advantages of Non Woven Bag Manufacturing Machine
One of the main functions of the non woven bag making machine is the automatic feeding of non-woven fabrics. The process involves continuously and precisely feeding the nonwoven material into the machine, ensuring a smooth, uninterrupted production process. The machine is able to handle various types and thicknesses of non-woven fabrics, which is crucial for versatility in bag production.
Another important function of these non woven bag making machine is ultrasonic welding of non-woven fabrics. This process firmly bonds the fabric together, creating a durable and reliable seam on the bag. The use of ultrasonic technology ensures strong and consistent welds, resulting in a high-quality finished product.
In addition, the non woven bag making machine making machine also has cutting and shaping functions. These machines are able to precisely cut and shape non-woven fabrics into the desired bag size and shape. Precision in the cutting and forming process is critical to producing uniform and aesthetically pleasing nonwoven bags.
Additionally, these non woven bag making machine often have automatic counting and stacking capabilities. This allows for efficient, organized production as finished bags are automatically counted and stacked for easy packaging and distribution.
Key Differences Between Fully Automatic and Semi-Automatic Non Woven Bag Making Machine
Automation Level
Fully automatic machines represent the pinnacle of automation in the packaging industry. These machines are designed to operate with minimal manual intervention. They leverage advanced technology and precision engineering to perform a wide range of tasks autonomously. From non woven feeding and creasing to gluing, bag forming and cutting, fully automatic machines streamline the production process. They reduce the need for manual labour and increase operational efficiency. The automated features of fully automatic non woven bag machines enable them to perform complex tasks with precision and consistency. They ensure precise control and seamless operation throughout the production cycle. Operators primarily oversee the machine's operation. They monitor their production progress and perform routine maintenance tasks to ensure optimal performance.
Semi-automated machines require a certain level of manual operation. While they incorporate automated features for bag forming, cutting and gluing, operators need to perform tasks such as non woven roll feeding and adjusting machine settings manually. Semi-automatic machines strike a balance between automation and manual intervention. They offer flexibility and customization options while still requiring operator involvement.
Operators play a crucial role in ensuring the smooth operation of semi-automatic non woven bag machines. They are responsible for loading non woven rolls into the machine, adjusting settings to meet specific production requirements and monitoring the production process. They require addressing issues that may arise. These machines rely on operator skill and expertise to optimize performance and maintain productivity.
Production Capacity
Fully automatic machines are designed for high-volume production. They are capable of producing a large number of non woven bags within a relatively short period. These machines leverage advanced technology and continuous operation to maximize output and meet the demands of businesses with high-volume production requirements. They are well-suited for large-scale manufacturing operations and industries with significant market demand.
Semi-automatic ones have a lower production capacity compared to their fully automatic counterparts. While they are capable of producing non woven bags efficiently, their output is typically lower. This makes them ideal for small to medium-scale production. They are well-suited for businesses with moderate production volumes.
Cost and Investment
The cost of fully automatic bag-making machines is generally higher compared to semi-automatic ones. These machines involve a significant initial investment due to their advanced technology and high production capacity. Moreover, their operational expenses such as maintenance and energy consumption may contribute to higher overall costs over time.
Semi-automatic non woven bag machines are comparatively budget-friendly. They have a lower upfront cost and operational expenses. This makes them accessible to smaller businesses and start-ups with limited capital. While these machines may require some investment in operator training and maintenance, their lower overall cost makes them an attractive option for businesses with low budget.
Operator Skill and Training
Fully automatic non woven bag machines require minimal operator intervention and training. Operators primarily oversee the machine's operation, monitoring production progress and performing routine maintenance tasks as needed. While operators may need basic training to familiarize themselves with the machine's controls and operation, fully automatic machines are designed to be user-friendly and intuitive, minimizing the need for extensive technical expertise.
Semi-automatic ones require operators to have a certain level of skill and training. This is because operators play a critical role in optimizing their performance, troubleshooting issues and maintaining productivity throughout the production cycle. As such, operator training and expertise are essential for maximizing the efficiency and effectiveness of these bag making machines.
Flexibility and Customization
Fully automated machines are equipped with advanced features and adjustable parameters that allow businesses to produce various types and sizes of non woven bags. This includes flat-bottom bags, square-bottom bags, and gusseted bags. With customizable settings and precision control, these machines enable businesses to meet specific design and branding requirements. They maintain consistent quality and uniformity across all products.
While semi-automatic machines offer some degree of flexibility, their customization options are comparatively limited. These machines are generally better suited for standard bag sizes and designs although certain models may offer some customization capabilities. While they may not offer the same level of flexibility as fully automatic machines, these models can still accommodate a variety of production requirements and cater to diverse customer needs.
Types of Non-woven Bags That Can Be Made by Non Woven Bag Making Machine

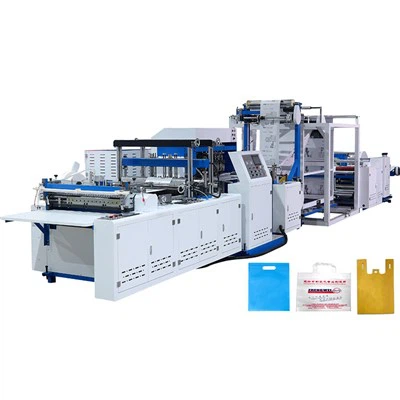

D Cut Non Woven Bags
These bags have a D-shaped handle attached to the top and are commonly utilized for grocery shopping, promotional events, and trade shows.
W Cut Non Woven Bags
Like D-cut bags, W-cut bags feature a handle attached to the top of the bag, but the handle forms a "W" shape. They offer a more comfortable grip and are suitable for carrying heavier items.
Box Non Woven Bags
Box bags have a rectangular shape with a flat bottom. They are ideal for carrying bulky items such as books, documents, or electronics.
Tote Non Woven Bags
Tote bags are large, open-top bags with two long handles. They are perfect for carrying everyday essentials, groceries, or beach accessories.
Drawstring Non Woven Bags
Drawstring bags feature a drawstring closure that allows for easy opening and closing.
People commonly use non-woven bags for carrying shoes, gym clothes, or other items that need to be kept secure.
Laminated Non Woven Bags
Laminated bags have a thin layer of plastic coating applied to the surface, making them water-resistant and more durable. They are suitable for carrying wet items or items that need extra protection.
Printed Non Woven Bags
Non woven bags can be printed with custom designs, logos, or messages. This makes them an excellent choice for branding and promotional purposes.
Cautions for Operation of Non Woven Bag Making Machine
Close the main power switch of the machine tool, check whether the equipment is leaking electricity, preheat the barrel and die according to the set technological temperature requirement, and keep the barrel warm for more than 20 minutes when the temperature reaches the technological temperature, so as to ensure the uniformity of the temperature in all parts of the barrel. If no abnormal phenomena are found, the oil pump can be officially started, and the operation can be performed only after the "motor is turned on" is displayed on the screen to check whether the function of the safety door is normal.
Manual start screw rotation, check screw rotation sound abnormal and stuck.
Operators must use safety doors. For example, when the safety door travel switch fails, they are not allowed to turn on, and they are strictly prohibited from using safety doors (covers) to operate.
All kinds of covers and protective covers of the electrical, hydraulic and rotating parts of the running equipment should be well covered and fixed.
Non-on-duty operators are not allowed to press buttons or handles without permission. Two or more persons are not allowed to operate the same film blower at the same time. Relevant personnel troubleshoot.
When the machine is repaired or the mould is cleaned for a long time (more than 10 minutes), the injection seat must be retreated so that the nozzle leaves the mould, the motor is turned off, and the operator is not allowed to leave the post when the repairman repairs the machine.
The power supply must be cut off when the body enters the machine tool or when the die opens. Avoid dangerous areas. When cleaning the rubber head of the nozzle, it is not allowed to clean directly by hand, and iron forceps or other tools should be used to avoid scalding. Climbing and shelving items in case of soup injury, electric shock and fire.
When the hopper is not loaded, metal bars and rods are not allowed to be used, and the hopper is roughly jammed to avoid damage to the dividing screen, shield cover and magnet frame in the hopper. If the screw rotates, it is very easy to cause serious damage to the equipment when the metal bars are rolled into the barrel.
When abnormal noises, odors, sparks and oil leaks are found in the operation of the automatic non woven bag making machine, the machine should stop immediately, report to the relevant personnel immediately, and explain the phenomena and possible causes of the failure.
Pay attention to safe operation. Do not use any reason or excuse to make operation mode that may cause personal injury or damage to equipment.
Controllability Of Non Woven Bag Making Machine
Before starting the non-woven bag making machine, the size of the bag should be adjusted according to the requirements of the construction sheet and process documents, and the heat sealing knife should be installed, and the position of the cutting knife and the heat sealing knife must be arranged in advance; the relevant data for making bags and the required number of each link must be entered; and the sensitivity of the eyes must be adjusted around the edge of the pattern with a large color difference to meet the requirements.
The temperature-controlled sealing element of the non-woven bag making machine moves to touch the film for a certain time to seal the information properly. Sealing temperature and time vary by data type and should be stable at different machine speeds. The sealing element equipment and associated machine configuration depend on the type of seal specified in the bag planning. In most machine modes, the sealing process is accompanied by the cutting process, both operations being performed at the feed end.
Non-woven bag making machine adopts computer control, servo motor structure, with photoelectric automatic tracking, white bag, color bag conversion function, microcomputer fixed length, automatic counting, arrival alarm, automatic temperature control, can is processed through garbage bags, rolled flat pockets and flat pockets. The bag making machine uses new materials to replace traditional plastics to achieve the goal of environmental protection, recycling and reuse and realize sustainable development of energy. Among the new raw materials is a new type of plastic: corn plastic. The scientific realization of raw materials is also the driving force behind the development of plastic packaging machinery.
Non-woven bag production machine, the raw materials can produce printing, natural color, bags using PLC control, double servo (stepper) fixed length motor, real-time LCD touch display, from feeding, sealing, cutting, punching, transportation one-time completion, high degree of automation, good economic benefits.
FAQ
Q: What is non woven bag manufacturing machine?
Q: Advantages of non woven bag manufacturing machine?
Q: Key differences between fully automatic and semi-automatic non woven bag making machine?
Q: Types of non-woven bags that can be made by non woven bag making machine?
Q: Key components of a non woven bag making machine?
Q: Several common functions in the production of non-woven bag making machines?
Q: The common printing processes of non-woven bag making machines?
Q: The precautions when disassembling the non-woven bag making machine?
Q: How to produce non-woven bag making machine?
Q: How to ensure product quality in non woven bag making machine processing?
